Fuel Cell

pyrotect fia ft3 fuel cells

The story starts here.

Previously the current owners of Pyrotect were in the fuel cell business. They served many of us for a number of years, with good products and fair treatment.
Then it was sold.
Many of us were not happy, for a long time.

Their "non-compete" agreement is now over and they have re-joined the fuel cell business in hopes of better serving us who have complained loudly about the poor quality and mistreatment from their previously business.
Although we are normally associated with custom, single-seater car type cells, the following information is for those with standard steel or aluminum container type cells.
We still offer custom bladder cells as used on single-seater vehicles and as the information increases we will publish it here.

Let us help you with a return to a fair priced, quality constructed fuel cell for your application.

Pyrotect drivers equipment


Sport Racer and Single Seater Race Cars

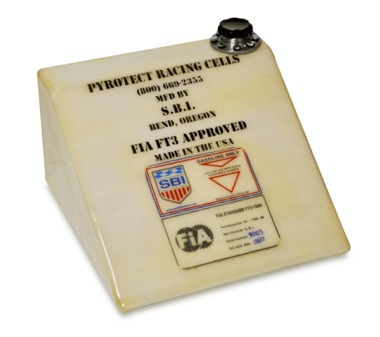

safety fuel bladder from pyrotect



Pyrotect FIA-FT3 approved fuel bladders in standard and custom sizes.
All the safety by design of the other Pyrotect fuel cell series for those with Single seater of Sport racers where the cell is positioned in the chassis behind fire walls which are part of the structure.







Pyrocell Elite series

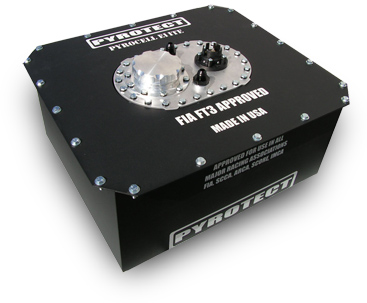

.pyrocell elite series fuel cell

Pyrotect's top of the line racing FIA-FT3 approved Elite Series cells are designed for all types of racing applications. The Elite series comes complete with a standard billet 3-1/2" threaded neck and cap with Pyrotect's exclusive billet aluminum flapper valve standard, -8AN fuel pick-up and a -8 vent check valve.

Advantages

  • Large 3-1/2" billet aluminum filler cap
  • Billet aluminum fill plate
  • Billet safety flapper valve
  • Semi flat black textured powder coating steel container
  • 3 year bladder warranty

Available Optionsinternal surge tank for pyrotect fuel cell

  • Aluminum container
  • Remote Fill Valve
  • Collector (surge) system *
  • -6AN, -8AN or -10AN fuel pick-up
  • Twin fuel pick-ups
  • -6AN or -8AN returns
  • Sending unit
  • Mounting straps
  • 2-1/4" Straight remote fill
  • 2-1/4" Straight remote fill w/1" Check valve
  • 2-1/4" 45 Degree remote fill
  • 2-1/4" 45 Degree remote fill w/1" Check valve
  • 3" Straight remote fill w/1" Check valve
  • 3" 34 Degree remote fill w/1" Check valve





Pyrocell Elite Series

Part No. Est. Capacity Length Width Height
PE 105 5 gallon 13.62" 13.62" 8.37"
PE 108 8 gallon 20.12" 12.12" 8.62"
PE 110 10 gallon 25.62" 10.12" 10.12"
PE 112 12 gallon 20.12" 17.12" 9.12"
PE 115 15 gallon 24.62" 17.12" 9.12"
PE 117 17 gallon 20.12" 17.12" 12.12"
PE 118 18 gallon 28.12" 17.12" 10.12"
PE 122A 22 gallon 34" 17.5" 9.5"
PE 122B 22 gallon 25" 16.75" 13.62"
PE 122C 22 gallon 32.62" 18" 10"
PE 112D 22 gallon 33" 17" 9.25"

Cell sizes up to 60 gallon available. Add -A suffix  (PE 105-A) to part number for aluminum container.

Pyrocell Touring series

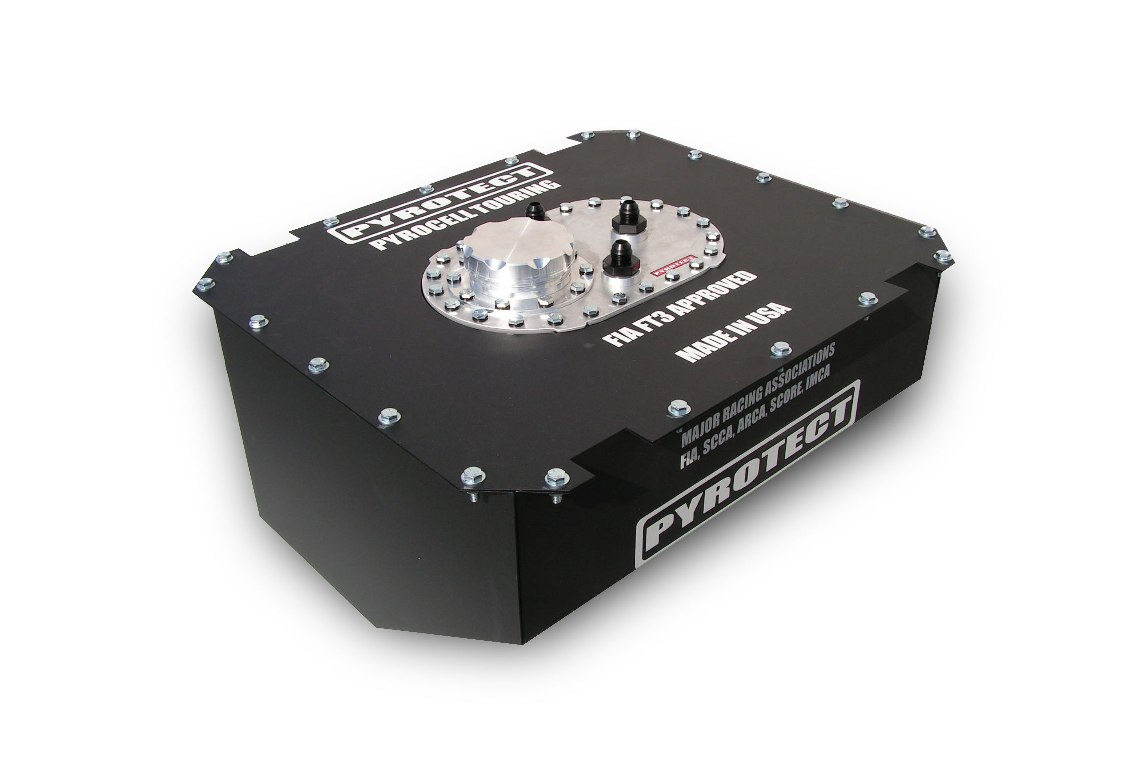

pyrotect touring series fuel cell with angled bottom in steel or aluminum container

Shown here in a steel container, Pyrotect's top of the line racing FIA-FT3 approved Touring series cells are designed for sedan style road racing applications.

Advantages

  • Large 3-1/2" billet aluminum filler cap
  • Billet aluminum fill plate
  • Billet aluminum safety flapper valve
  • Semi flat black textured powder coating steel container
  • Twin -8AN fuel pick-up
  • -8AN Vent check valve.
  • 3 year bladder warranty
  • Lower center of gravity
  • Angled cell bottom for added clearance

Available Options

  • Aluminum container
  • Remote Fill Valve
  • Collector systems
  • -6AN, -8AN or -10AN fuel pick-up
  • Internal fuel pump
  • Fuel return
  • Sending unit
  • Mounting straps

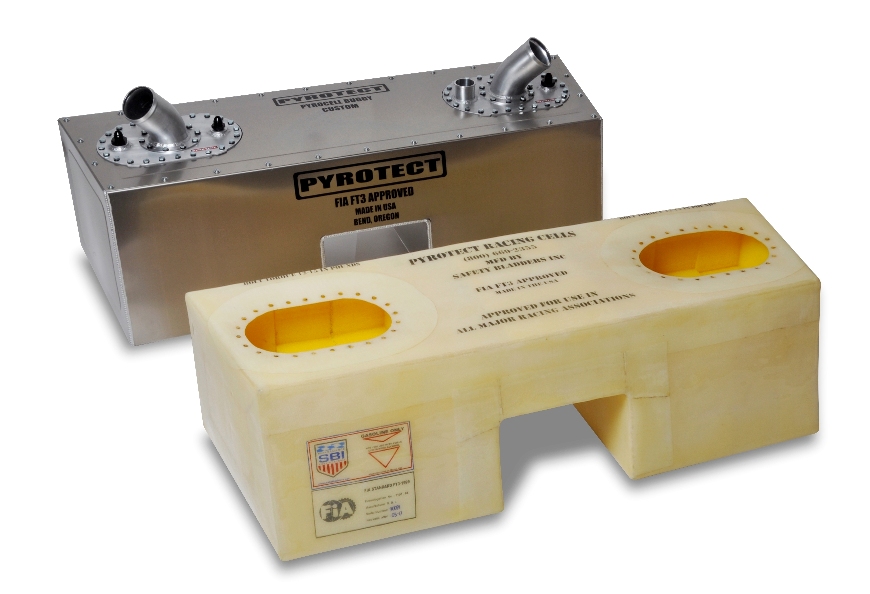

Custom cells with a steel or aluminum outer housing like this example from the Pyrocell Buggy Cell series.
Send drawing for quote.

custom buggy fuel cell from Pyrotect



.
